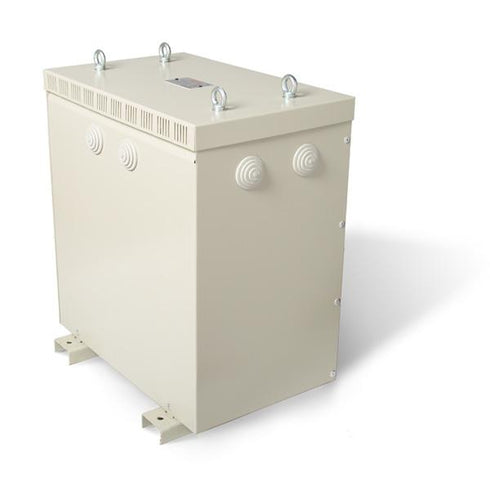

POLYLUX® — Isolation transformer— Auto transformer — 230V/3-phase to 400V/3-phase

Product Information

• 230V/3-phase in and 500V/3-phase out
• Supplied in several different sizes- adapted to your needs

• Mainly IP23 - can also be delivered with an IP-rating
• Choose between isolation transformer or auto transformer

Quality has always been fundamental to the development and production of POLYLUX. All products are designed, manufactured and tested according to current international standards. POLYLUX has 50 years of experience in the production of transformers, safety equipment and power, which means that you, as a customer, can rest assured you are receiving a quality product.

"Dry type" transformer is delivered in a laquer finish which provides:

• Increased protection

• Better electrical insulation
• High compression capacity

• Reduced noise level

• Increased product life

Isolation Transformer  The Isolation transformer clean and local power grid without earth faults (galvanic isolation) which is practical if you have earth faults that cause problems with charging or if you want to  charge the Renault ZOE. The transformer scales up 400V/3-phase to 230V/3-phase so that it is possible to charge faster if the car supports 3-phse charging. Cars like Tesla Model S/X, Renault ZOE and BMW i3 are a few cars that support this. If you want a 230V/1-phase isolation transformer, you can find it here (her).

We can deliver the isolator transformer in IP23 enclosure in the following sizes:

Primary- Intake Current 230V/3-phase Number of kVa on Transformer Secondary - Output Current 400V/3-phase Charge Effect Product Sheet 12A 5 6A 4,1 kW 16A 6,3 9A 6,2 kW 20A 8 10A 6,9 kW 25A 10 14A 9,6 kW 32A 12,5 16A 11,0 kW 40A 16 20A 13,8 kW 63A 25 32A 22,0 kW 230V/3-phase	Antall kVa på transformator	Sekundær - Uttakstrøm 400V/3-fas	Ladeffekt	Produktark
12A	5	6A	4,1 kW
16A	6,3	9A	6,2 kW
20A	8	10A	6,9 kW
25A	10	14A	9,6 kW
32A	12,5	16A	11,0 kW
40A	16	20A	13,8 kW
63A	25	32A	22,0 kW

Auto Transformer
If you only need to scale up a 230V/3-fas to 400V/3-phase without a galvanic separation, an auto transformer will be your solution. This allows for 3-phase charging and thus faster charging as long as the car supports this. An auto transformer is the cheapest way to get 400V for vehicle charging from a 230V/3-phase power main.

We can supply auto transformers in IP65 enclosures in the following sizes:

Primary- Intake Current 230V/3-fas	Number kVa on Transformer	Secondary - Output Current 400V/3-fas	Charge Effect	Product Sheet
12A	5	6A	4,1 kW
20A	8	10A	6,9 kW
25A	10	14A	9,6 kW
32A	12,5	16A	11,0 kW
40A	16	20A	13,8 kW
63A	25	32A	22,0 kW

Reminder that it must be secured on the primary and secondary side to avoid overloading the transformer. Delivery time is about 4 weeks.

Technical Details

Questions and Answers

Warranty

We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods.  Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
