Product information
- Ergonomic plug made of high-quality ABS
- 5 or 10 meter charging cable with CHAdeMO plug and pigtail (open end - without plug/plug on one end)
- Solid TPU (thermoplastic urethane) for a robust and soft cable
- According to the JEVSG 105 standard

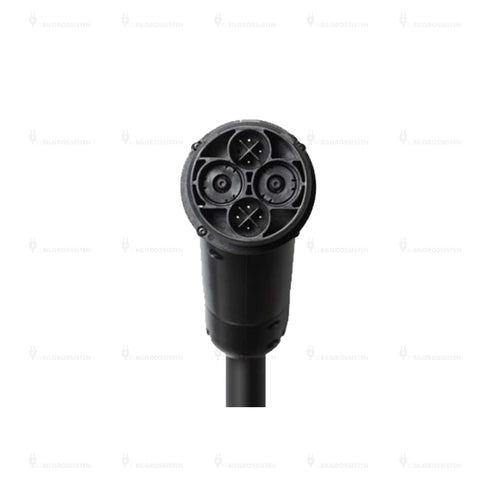

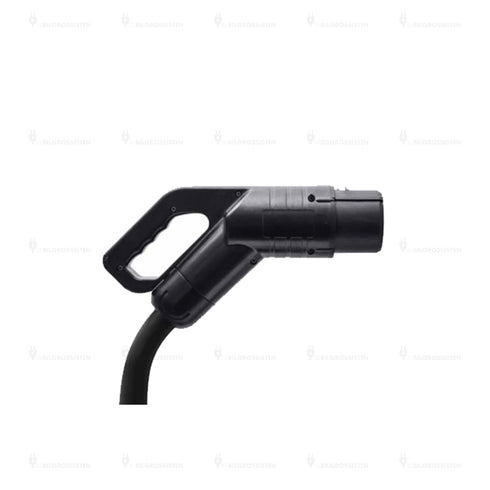

EBG pigtail charging cable of 5 or 10 meters with CHAdeMO plug / socket, and with open end (without plug). The charging cable is intended for direct installation in a lightning charger / fast charger / DC charger .
The CHAdeMO plug supports auto-lock and locks securely to the car during charging, also preventing accidental interruption of charging.
Material selection
The plugs are made of high-quality ABS plastic with a great finish and give an elegant impression.
Current conductors
The charging cables use pure copper of very good quality, which ensures good current conduction.
Rubber cable
The charging cable uses a cable made of TPU (thermoplastic urethane), which makes the cable soft and usable in cold environments, while also being robust and mechanically durable.
Functions of conductors on the CHAdeMO standard
| Pin # | Function |
|---|---|
| 1 | Reference GND for insulation monitor |
| 2 | Control EV replay (1 of 2) |
| 3 | Not in use |
| 4 | Ready to charge control |
| 5 | Power(supply)line - negative |
| 6 | Power(supply)line - positive |
| 7 | Proximity detection |
| 8 | Communication + |
| 9 | Communication - |
| 10 | Control EV replay (2 of 2) |
According to the Electrical Equipment Regulations, Section 13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company .
If you are unsure which charging plug fits your electric car, you can use our charging guide .
Technical details
| Cable length | 5 and 10 meters |
|---|---|
| Number of phases | 2 |
| Current strength | 80 / 125 / 200 A |
| Color | Black or white |
| Operating voltage | 1000V |
| Insulation resistance | >500MΩ（D1000V） |
| Flame retardant class | UL94 V-0 |
| Mechanically tested | >10,000 charge cycles |
| Power plug (open end) | 30A — 35mm² + 2x0.5mm² + (2*9mm²) 80A — 35mm² + 2x0.5mm² + (2*9mm²) 125A — 35mm² + 2x0.5mm² + (2*9mm²) 200A — 35mm² + 2x0.5mm² + (2*9mm²) |
| Charging plug | CHAdeMO |
| Charging standard | IEC 62196-3 |
| Operating temperature | -35°C - 50°C |
| Protection class | IP54 |
| Impact resistance | IK08 |
| Weight | Depending on variant |
| Certifications | CE + RoHS |
| Warranty | 2 years |
Questions and answers
What kind of cable is this?
This is a cable that must be installed by an authorized electrician directly into a fast charger / lightning charger / DC charger.
Warranty
We are proud of our products and it is important to us that you as a customer are satisfied. That is why we provide a 2-year warranty on most of our products, with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that the product will function as expected throughout the warranty period (this is in addition to your rights under the Consumer Purchase Act). Read more about the warranty in our purchase conditions .
