Product Information

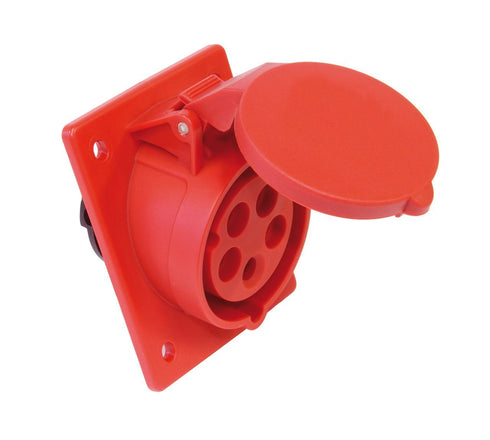

- Red 16A industry contact for mounting on a wall
- Perfect for charging with Tesla UMC charging cable w/ red adapter (416-6 plug)
- Possibility of combi-industrial contact with schuko contact
- Easy to mount - screw free quick connection of cable
Red industrial socket of 16A / 3-phase / 400V (5-pole 16A 6h) for mounting on the wall is practical when you need to use the connection point for other things than just charging electric vehicles. The combined industrial socket (household socket) is secured with 10A and can be used for household appliances, (not all at once).
Installation is easy as the industrial socket has a screw less quick connection that requires no tools, just a simple push from your thumb, (does not apply to combi-industrial socket). Cable entry both from above and hidden in the back provides more options for connection. ATTENTION! Difference in diameter of contact/plug between 16A and 32A.
According to regulations on electrical equipment §21, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Technical Details
| Rated Current |
16A |
|---|---|
| Color |
Red |
| Operating Voltage (VAC) | 230V (1-phase) / 400 (3-phase) |
| Frequency (Hz) | 50/60 |
| Conductors |
5 / 3PN + PE |
| Grounding Pole (h) | 6 |
| Cable Entry |
Above (M25), behind (M20) |
| Security |
Schuko (10A glass protection) |
| Net Weight |
310g (Industry contact) 390g (Combi-industry contact) |
| IP-Classification | 44 |
| Enclosure Material |
Plastic |
| Cable Cross Section |
2,5-6 mm² (rubber cable) / 2,5-10 mm² (one conductor) |
| Measurements | 155 mm H x 70.5 mm B x 110 mm D (industry contact) 176 mm H x 80 mm B x 133 mm D (Combi-industry contact) |
| Standards | EN 60309-1, EN 60309-2 |
| Warranty |
2 years |
Questions and Answers
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
