Product Information

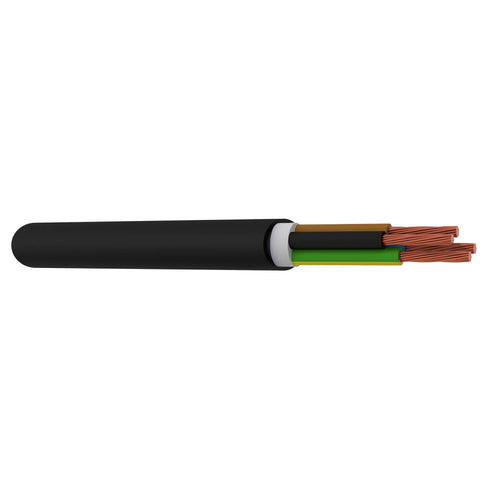

- TFXP Installation Cable (double insulated) for fixed installation
- Intended for both outdoor and indoor use- Cable can be laid directly on the ground without pipes
- Installation cable is well suited for use on cable bridges or laid in ducts and piping
- Price per meter
TFXP Installation cable for low voltage plant (230V / 400V) which is suitable for fixed installation on cable bridges, ducts, in pipes or insulated walls without additional protection. The cable can be installed outdoors directly on both a wall and on the ground. The cable is multithreaded which has double isolation with separate ground conductors. The cable is UV- protected against water penetration. The product is in further developement and improvement of PFXP.
Higher operating temperature, which also allows higher load with the same conductor cross-section. TFXP MR Flex is also suitable for electric car charging stations, awnings, heat pumps, stoves, extension cables, and for use at dock facilities.
Installation
See load table referring to installation types A2, B2, C, D2 and E. It is flexible and lighter to handle and install. The cable is double insulated and can be installed in the wall, laid outdoors in a cable trench, such as when connecting to outdoor cabinets according to NEK 399.
According to regulations on electrical equipment §13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company. installasjonsvirksomhet.
Technical Details
| Conductor Cross- Section | 10mm² |
|---|---|
| Number of Conductors |
3P + PE (4G10mm²) |
| Conductor marking | Brown, black, grey + yellow/green (PE) |
| Type Of Conductor | Multi-stranded, round copper/ Kl.5= multi-stranded |
| Conductor Material | Copper |
| Voltage | 600V / 1000V |
| Outter Diameter | Ø15,7 mm |
| Color on Cable/ Outter Sheath | Black, lead free UV-resistant PVC (Polyvinyl chloride) |
| Isolation | Double isolated, lead free PVC |
| Maximum Operating Temperature | 90°C |
| Minimum Handling Temperature | -30°C |
| Conductor Resistance DC+20°C | 3,08 ohm/km |
| Weight | 323,3g pr. meter |
| Fire Class acc. EN 13501-6 | ECA |
| Flame Resistant | After EN 60332-1-2 |
| Sales Packaging | Per meter |
| Installation | Pulled through piping/ directly on to the wall or ground |
| Produced | NEK KABEL AS |
| Standard | CENELEC HD 21.4 S2; NEK IEC 60332-1/ EN50265 |
Questions and Answers
What type of cable is this?
This is an installation cable for your charging station which installs directly into the charging box.
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
