Note! Can only be installed by a registered installation company.
- Product Information
- Technical Descriptions
- Questions and Answers
- Warranty
Product Information
- Back plate to ZapCharger Pro with junction box- easy installation
- Works on all mains - 230V 1 and 3-phase (IT) and 400V 3-phase (TN)
- Power cable can be connected from above or below
- Mounted on the power course by an electrician

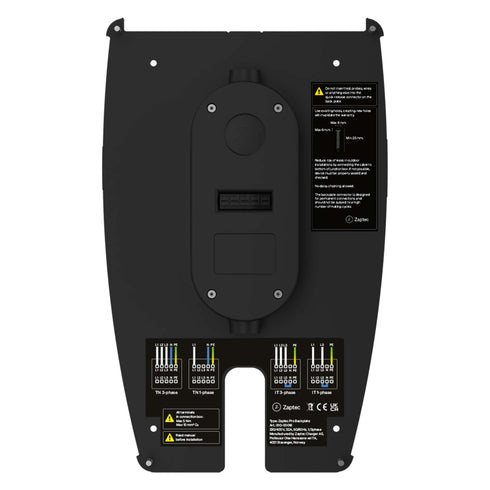

The back plate of the Zaptec Pro makes it easy to assemble and disassemble the charging station itself. The back plate simply needs to be pushed in when it is mounted on the wall or charging post. The charging station can be easily disconnected from the back plate with a special tool. The back plate must be installed by an authorized electrician which is also mandatory when installing ZapCharger Pro and Home.
According to regulations on electrical equipment §13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Technical Details
| Charging Contact |
Type 2 contact (IEC 62196-1/2) |
|---|---|
| Charging Modus |
Mode 3 |
| Number of Phases | 1 / 3 |
| Power Supply |
10, 16 or 32A |
| Power Grid |
IT (230V) and TN (400V) |
| Charging Current |
wireless adjustments between 6A-32A (1,3-22kW) |
| Operating Voltage | 230V-400V |
| Frequency | 50-60 hz |
| Power Consumption |
< 1w idle |
| Automatic Fuse |
3x32A, type C |
| Earth-Fault Protection |
Built-in electronic earth-fault protection type B |
| Operating Temperature |
-25°C to +40°C (Lager: -30°C to +50°C) |
| Authorization | RFID/NFC, 13,56 Mhz / application |
| WiFi | 802.11n |
| Communications Protocols |
Bluetooth (BLE), Power Line Communication (PLC), WiFi and RFID/NFC |
| Functions |
Load Balancing Phase Balancing Cloud based services Energy measurement Soft start |
| Energy Control |
Prepared for smart homes |
| Power Measurements |
Integrated power meter |
| Software Updates | Automatic Downloads |
| Protection Class |
IP54 |
| Measurements | 39,2 x 25,8 x 11,2 cm |
| Weight | 1 kg |
| Certifications | CE and EV |
| Warranty | 5 years |
Questions and Answers
Do you have questions not listed here?
Contact us either on phone 23 90 55 15 or by email kundeservice@elbilgrossisten.no for a pleasant and informative conversation.
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
