Product Information
- Specially developed for cars with 32A/1- phase on-board charger
- Charging box that converts 16A/400V/3-phase (TN) to 32A/1-phase/230V
- Space-saving and can be easily mounted onto the wall
- Built-in DC-RCM 6mA - does not need a separate ground fault protection type B

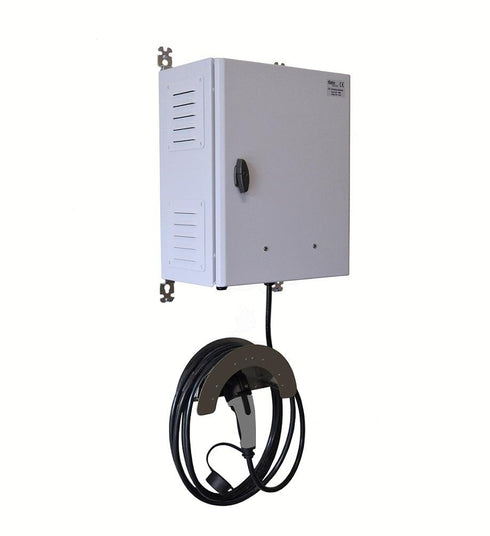

EVE Transformer Home Box is a charging station that converts 16A/400V/3-phase to 32A/1-phase (7.2 kW) and is excellent for cars with large 1-phase on-board charger where you have access to a 400V TN network. The Home charger is perfect for, for example, Jaguar I-PACE, Hyundai KONA/ IONIQ and Nissan LEAF/ e-NV200 (2018). The charging station offers ease of use, comfort and safe charging according to regulations (IEC 61851).
NOTE! This is a made-to-order item and has a 2-3 week delivery time.
Practical and Universal Solutions

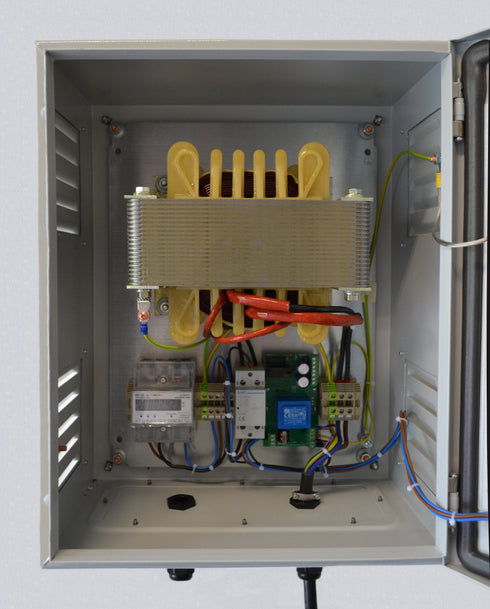

The EVE Transformer Home Box enables mode 3 charging and can be supplied with a 5 or 10 meter fixed charging cable with type 2 plug. A fixed charging cable makes charging the car convenient and easy to charge your car. It has a built-in power meter as standard.
Earth Fault Circuit Breaker
New regulations (NEK 400:2014-722 standard) require that all new current courses that are to be used to charge electrical vehicles must have an earth fault circuit breaker/ earth fault protection type B. The charging station has a built-in earth fault circuit breaker for AC (30mA) and DC-RCM module (6mA) which takes care of the DC-protection and means that you do not need earth fault protection type B installed in the fuse box.
Assembly/ Installation
After receiving your charging station from us, you can easily install it by contacting one of our installation partners (installasjonspartnere) or your local electrician. By agreement, our partners will visit your for an inspection and will provide a price quote for installation that is right for your particular case.
The charging station is suitable for, among other things, electric cars and plug-in hybrids such as:
According to regulations on electrical equipment §21, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Use ladeguiden (our charging guide) if you are unsure if this product suits your electric car.
Technical Details
| Charging Outlet/Plug | Type 2 plug |
|---|---|
| Length of Cable | 5 meters |
| Number of Cables | 1 and 3 |
| Power Supply (AC) | 16A/400V/3-phase - 400 VAC ± 10 %; 50 Hz |
| Power Output (AC) | 32A/230V/1-phase - 7,2 kW |
| Operating Voltage |
400V AC / 230V (1- and 3-phase) |
| Earth Fault Protection | AC 30mA and DC-RCM 6mA |
| Authorization | none |
| Color | Black/ Grey |
| Charging Standards | IEC 61851-1 |
| Operating Temperature | -25°C - 50°C |
| Measurement | L 50cm x W 40cm x H 25cm |
| Weight | 48kg |
| Security/ Protection Class | IP23 |
| Installation | Simple and quick installation. Pre-wired cables |
| Certifications |
CE |
| Warranty |
2 years |
Questions and Answers
Does the EVE Transformer Home Box support 230V/ 3-phase mains (IT)?
No, it is unfortunately not possible to get the same effect from a 230V/3-phase IT main.
Installation and user manual can be downloaded below.
Bruksmanual kommer - Norwegian Language
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
