Product Information
- Charging post/column in rust free steel
- Is not supplied with foundation or screws
- Perfectly fits Ratio Home Box
- Suited for outdoor use

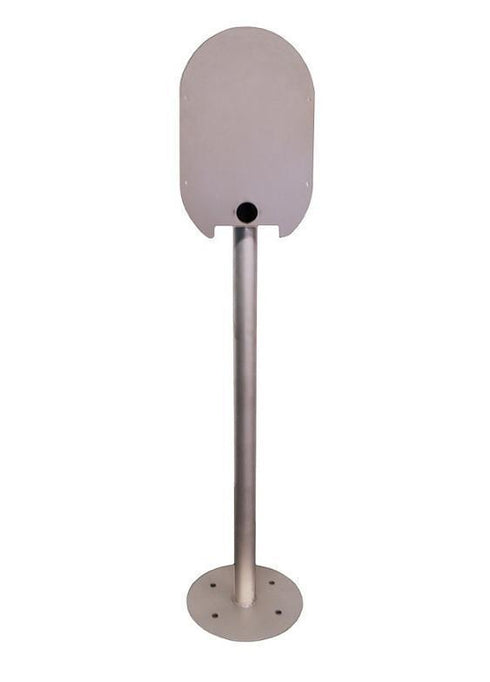

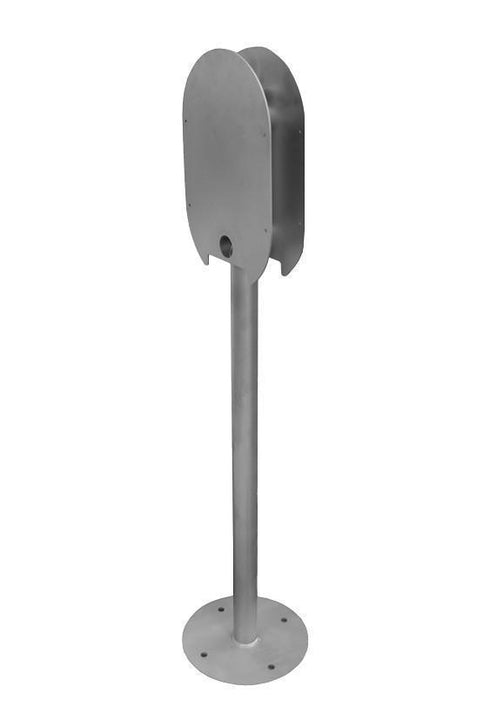

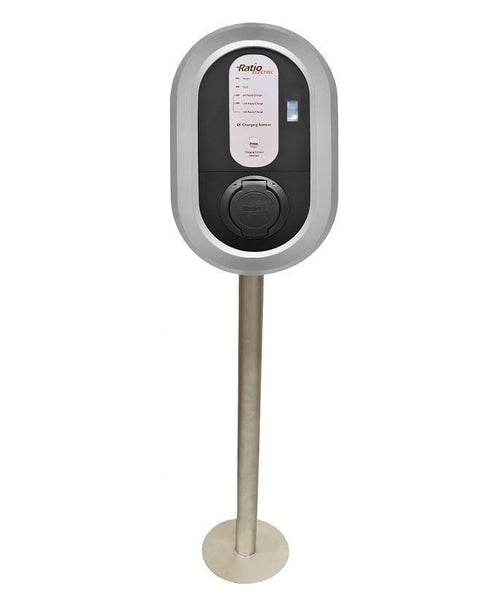

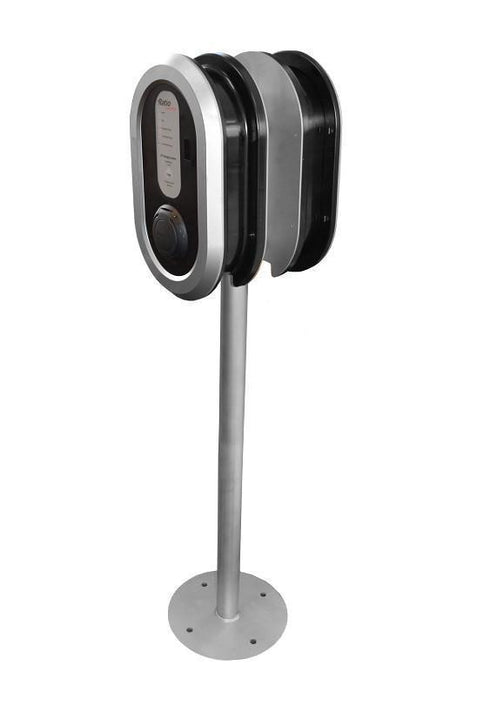

Ratio Electric charging post/ column has been specially developed for the Ratio Home Box. It is perfect for attaching to a foundation in concrete. The post can be supplied with a single or a double plate for 2 charging stations. It is specially designed for Ratio's base (Ratio sin base) and is easy to mount. Other bases can also fit, but make sure it has the same dimension.
According to regulations on electrical equipment §13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Technical Details
| Material | Rust free steel |
|---|---|
| Color | Silver/ Grey |

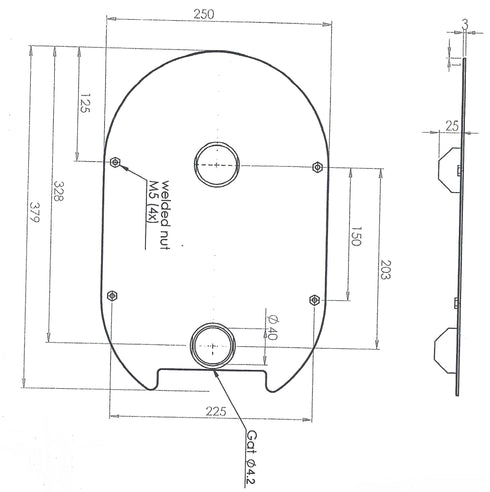

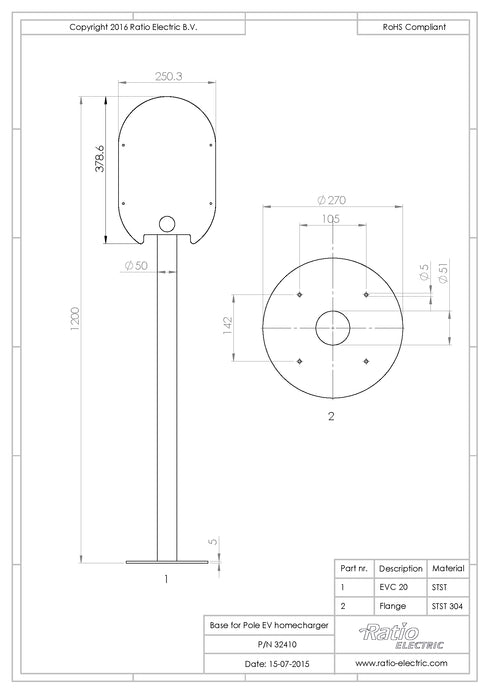

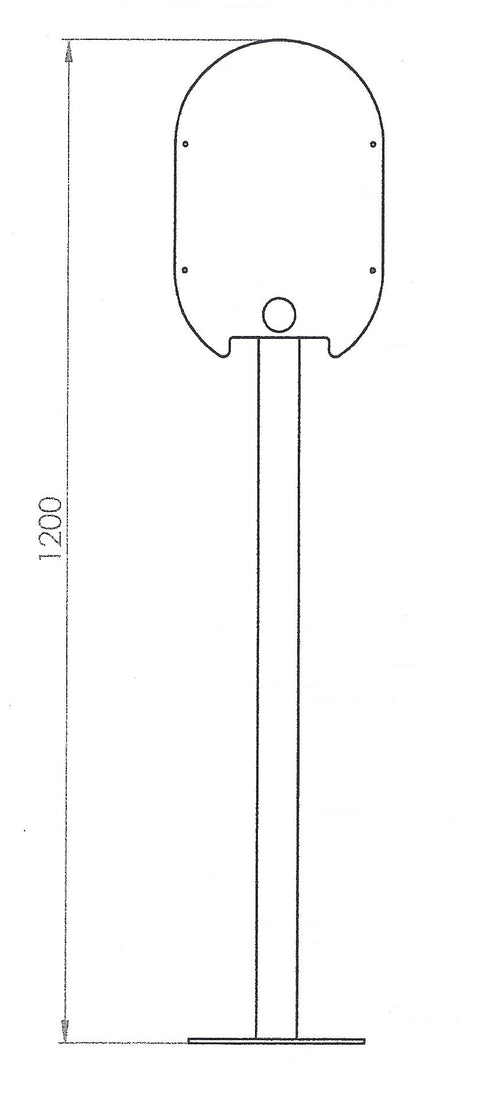

| Measurements | column: 1,2 meters high attached to the charging station: 379mm x 250mm x 3mm |
| Weight | about 25 kgs |
| Hole in the Bottom Plate | Ø13 |
| Thread Holder | M12 / M12 bolts |
| Installation | Must be attached to a foundation |
| Certifications | CE |
| Warranty |
5 years |
Questions and Answers
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
