Note! Can only be installed by a registered installation company.
- Product Information
- Teknisk beskrivelse
- Questions and Answers
Product Information
- Works on all mains and courses-230V 1/3-phase (IT) and 400V 3-phase (TN) and 6-32A
- Built-in DC-RCM 6mA- No need for earth fault circuit breaker type B in fuse box
- Supplied with type 2 plug/ outlet- universal solution
- Charging box in powder-coated steel- developed to last for many years
Versatile

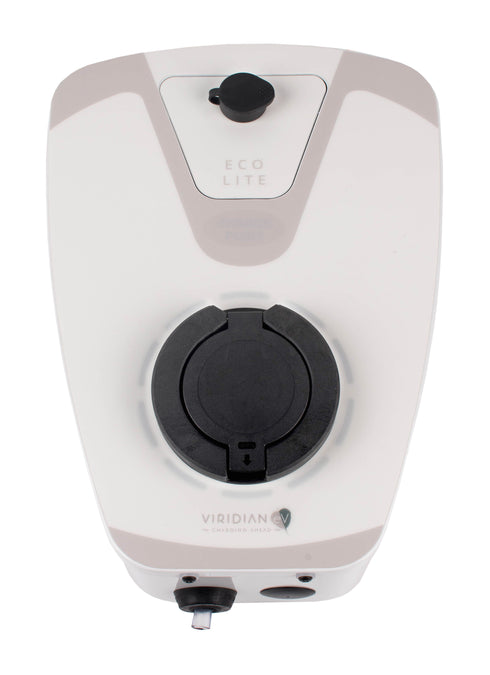

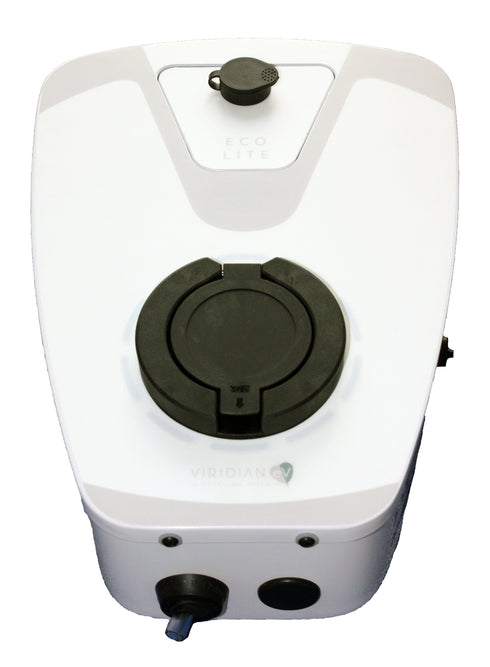

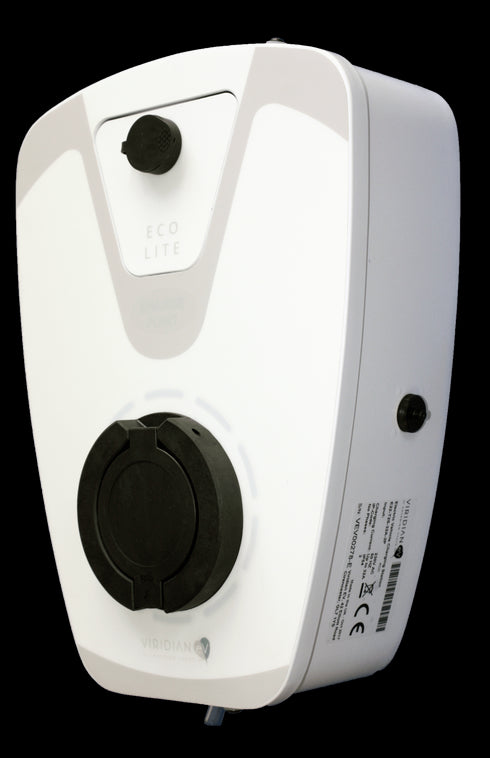

Viridian E-Lite Charging station with Type 2 connector supports a charging power from 1.4 kW (6A) to 22 kW (32A) and supports all power grids- 230V 1/3-phase (IT) and 400V 3-phase (TN). The charging station is developed for private and public use and is very user-friendly. E-Lite is made of steel and powder coated white- lasting for many years to come.

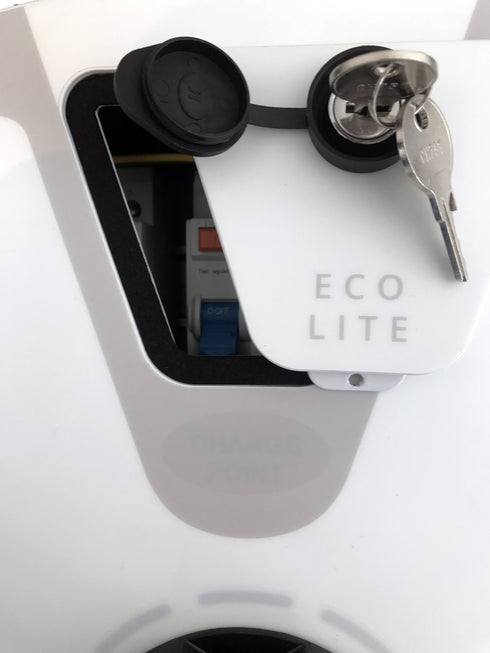

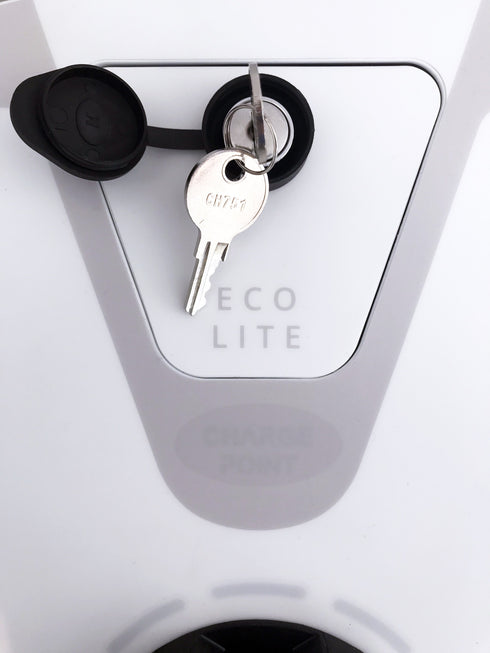

E-Lite also has a small hatch at the front with key access that allows you to easily turn off the charging station so that unauthorized persons are not able to charge.
According to regulations on electrical equipment §21, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Tekniske detaljer
| Charging socket/ outlet |
Type 2 |
|---|---|
| Number of Phases |
1 / 3 |
| Amperage |
6-32A |
| Charge Effect |
up to 22kW (1,4kW - 22kW) |
| Operating Voltage |
230V / 400V AC |
| Building Material |
Powder coated steel |
| User Access |
Reset via sealed key lock |

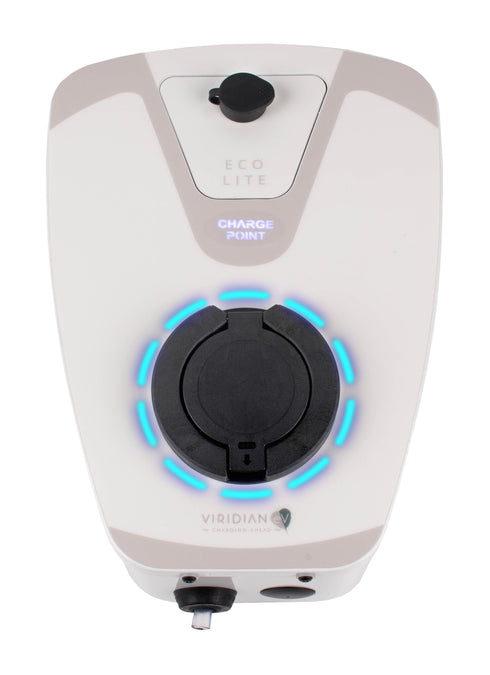

| Status Indicator |
3 LED-lights - red, green and blue |
| Earth-Fault Circuit Breaker |
Type A AC 30mA + DC-RCM 6mA (ihht IEC 62995) |
| Color |
White/Grey |
| Load Balancing |
Static (halving of charging current) |
| Charging Standards | IEC 61851-1, IEC 62196-1/-2, IEC 61000-6-1/-3 2006/95/EC, 2011/65/EU |
| Operating Temperature | -25°C - 50°C |
| Measurements | H 32cm x W 23cm x D 13cm |
| Weight | about 5kgs |
| Security/ Protection Class | IP54 - intended for outdoor use |
| Installation | Simple and quick installation. Pre-wired cables |
| Certifications |
CE |
| Warranty |
3 years |
Questions and Answers
I have 230V/3-phase (IT) at home. Can I get 11 kW/ 22 kW charging? Unfortunately, no. In order to get 11 kW or 22 kW charging, you must have access to a 400V/3-phase (TN-S) power grid.
What is the difference between an earth fault circuit breaker and DC-RCM?
Earth-fault circuit breaker type B protects against 30mA AC and DC while a DC-RCM is a module that is sensitive to DC leaks (6mA) and can thus be used with a normal earth-fault circuit breaker type A without going into staturation, which is in accordance with IEC 62995. You can read more about this here (her).
Documentation
Documentation
|
|
|
|
|
Warranty
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
