Product information
- Installation without load disconnection
- Quick and easy assembly
- 1.5 m secondary cable
- Light opening Ø40x87 mm

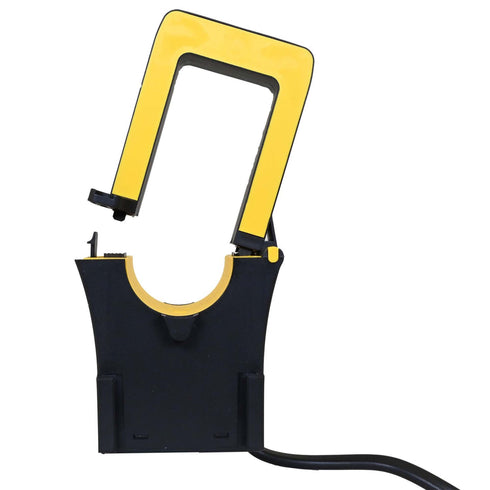

STP40L is a series of divisible ../5A current transformers from class 0.5 that are available from 500-1000A. STP40L is supplied with a light opening ø40x87 mm and comes with 1.5 m of pre-assembled secondary cable (1.5mm2). STP40L is installed quickly and easily, the secondary cable is connected to a ../5A instrument such as a network analyzer or kWh meter, then the light opening is opened without tools and the transformer is simply clicked around the cable and secured with the supplied straps. If desired, the open function can be locked after installation by tightening the locking screws.
The STP40L series is compact and space-saving while providing a quick and safe installation, simply a cost-effective choice compared to installing standard current transformers where the load must be disconnected. Particularly beneficial for all types of installations in operation that need energy monitoring or load control.
According to the Electrical Equipment Regulations, Section 21, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company .
Technical details
| Electricity number | 8005161 |
|---|---|
| Supplier's item number |
SL42265105 |
| Series |
STP |
| Secondary current | ../ 5A |
| Assembly | Divisible |
| Light opening | 40x87mm |
| Light opening rail | NOW |
| Accuracy | Class 0.5 |
| Primary current | 500A |
| Model / version: | Power transformer |
| Primary rated current In | 500A |
| Secondary rated current |
5 A |
| Secondary branding effect, visible effect |
0.5 Volt-amperes |
| Overcurrent limiting factor |
FS 5 |
| With touch protection | Yes |
| Opening diameter |
40 millimeters |
| Quick release |
Yes |
| With copper rail | No |
| Secondary connection | Cable |
| Number of primary inputs | 1 |
| Goal | 154 x 78 x 68 mm (HxWxD) |
| Weight | 650g |
| Warranty | 2 years |
Questions and answers
Split current transformer STP40L 5005A Ø40x87mm - FDV Warranty
We are proud of our products and it is important to us that you as a customer are satisfied. That is why we provide a 2-year warranty on most of our products, with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that the product will function as expected throughout the warranty period (this is in addition to your rights under the Consumer Purchase Act). Read more about the warranty in our purchase conditions .
