Produktinformasjon
- Spesielt tilpasset for 400V TN-nettverk
- Type 2 overspenningsbeskyttelse (sekundærbeskyttelse)
- For systemer med eller uten distribuert jording
- Ingen krav til ekstra beskyttelse (jordfeilbryter/ikke brennbart kapsling)

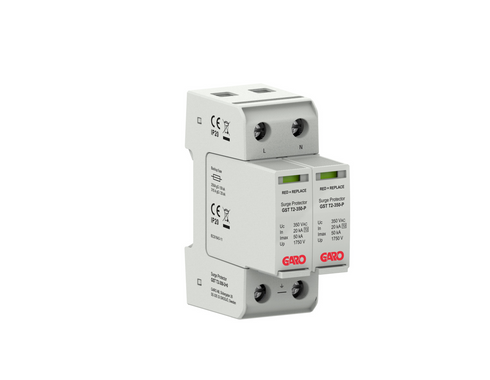

GARO's Surge Protection Device (SPD) can be used in all types of power distribution facilities. It is designed for mounting on a DIN rail and fits under modular cover. Class C / II surge protection devices are specially developed for protection against overvoltage in low voltage systems. Most have replaceable protection modules and the housings are halogen-free. Manufactured from flame-resistant PBT or flame-resistant nylon (depending on the model). All terminals are made of copper; if connecting with aluminium, adapters must be used.
For overhead lines, we have a special protection device called GST.
Can be used on systems with and without distributed earth.
As of 1.1.2019, surge protection is a mandatory protection in the fuse box when installing a new electrical circuit for charging electric vehicles. This applies to both a new charging point or charging station.
We are required by the regulation on electrical equipment § 21 to inform our customers that all electrical material intended to be included in a permanent electrical installation can only be installed by an authorized and registered installation company.
Technical Details
| Application | Indoor in fuse box |
|---|---|
| Power Network | TN-S / TN-C |
| Max Continuous Operating Voltage | 300V (AC) |
| Number of Poles | 3- and 4-pole |
| Type | Varistor class C / II |
| Max gG fuse | 250A |
| Max impulse current (8/20uS) Imax | 50kA |
| Nominal impulse current (8/20us-20ggr) In | 20 kA |
| Residual voltage Up | <1.5kV |
| Torque | 4.5 Nm |
| Operating temperature | - 40ºC - + 80ºC |
| Conductor cross-section | Single core 4-35mm². Stranded / multi-stranded with end sleeve 4-25mm² |
| Operating temperature | -30°C to +50°C |
| Installation | 35mm DIN, in accordance with EN 50022/DIN46277-3 |
| Enclosure material | Thermoplastic, UL94 V-0. Self-extinguishing. |
| Protection class (IP) | IP20 |
| Installation width | 2 modules, DIN 43880 |
| Thermal disconnector (internal solder fuse) | Indication window flag: Green = normal. Red = fault, replace plug. |
| Sales packaging | 1 piece |
| Volume | 0.194 dm³ (2-pole) 0.292 dm³ (3-pole) |
| Packaging dimensions | 90 x 36 x 60 mm (2-pole) 90 x 54 x 60 mm (3-pole) |
| Weight | 100g (2-pole) 130g (3-pole) |
| Standards and Approval |
IEC61643-11:2011; UL1449 4th |
| Warranty | 2 years |
Questions and Answers
Do I need surge protection?
NEK 400:2018, section 722 supply of electric vehicles says the following:
It is now required that the connection point should be protected by a surge protector. This can be a surge protector that is in front of the entire installation.
The reason is that the number of chargeable cars that have had their cars damaged as a result of lightning surges or connection surges is increasing rapidly. The cost of a repair can amount to several hundred thousand and it is not certain that this is covered by the insurance. It is recommended to interrupt and disconnect the charging equipment during thunderstorms.
Warranty
We are proud of our products and it is important to us that you as a customer are satisfied. Therefore, we provide a 2-year warranty on most of our products, with the exception of consumables. Look for the warranty logo to see what applies to this particular product. Our warranty means that the item should function as expected throughout the warranty period (this in addition to your rights under the Consumer Purchase Act). Read more about the warranty in our purchase terms.
